Site : Russia
Equipment: 15-20t/h dry mix mortar
1 set of dry mix mortar production line for Russia customer were on delivered 2010,19th, November. And the installation is very successful.
Contain of equipment:
| Name | Material silo | belt type bucket elevator | Screw conveying pump | Batching bucket |
| Quantity | 2 | 2 | 2 | 1 |
| Name | Double shaft mixer | Premix silo | Finished product silo | Automatic exposure packaging machine | Cyclone |
| Quantity | 1 | 1 | 1 | 1 | 1 |
| Model | Automatic Dry mortar Production line |
| Capacity | 15-20 t/h |
| Mixing system | DWZ1500 Double Shaft Paddle Mixer |
| Total power | 93kw |
| Raw material | Cement, fly ash, additives, sand, etc |
| After-sale service | Erection & commissioning, operator training |
| Warranty | 12 months after erection |
| Each System Part Technical Data | |
| Mixing System Mixer Model & Quantity | DWZ1500 Double Shaft Paddle Mixer, 1 unit |
| Discharge capacity | 1.2t per batch |
| Feeding capacity | 1.2t per batch |
| Mixing cycle time | 150S |
| Motor power | 15kw |
| Air Cylinder | QGB100*300 |
| Total weight | 1500kg |
| Overall dimension L*W*H | 1850×1950×1180mm |
| Mixing System Pre-mixing Hopper Model & Quantity | 1.5 m3 Pre-mixing hopper, 1 unit |
| Volume | 1.5 m3 |
| Pneumatic Valve | DN150 |
| Mixing System End Product Hopper Model & Quantity | 1.5 m3 End product hopper, 1 unit |
| Volume | 1.5m3 |
| Motor Power | 7.5kw |
| Raw Material Storage System Model & Quantity | 100T Detachable Silo, 2 units |
| Silo Diameter | 3m |
| Silo Height | 9m |
| Silo Total Height | 12m |
| Discharge Height | 1.5-3.0m |
| Pneumatic Valve | DN300 |
| Weight | 5 tons |
| Batching & Weighting System Model & Quantity | V=1.5m3 Batching Weighing Hopper, 1 unit |
| Volume | 1.5m3 |
| Motor power | 4kw |
| Screw conveyor | LSY165*2800mm |
| Overall dimension L*W*H | 3* 1.16 *1.55m |
| Conveying System Model & Quantity | LSY219 Screw Conveyor, 2 units |
| Tube Diameter | 219mm |
| Spiral Diameter | 180mm |
| Carrying Capacity | 45t/h |

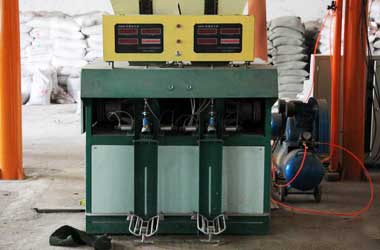

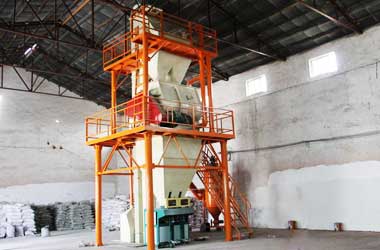

And please check our delivery pictures right below:
 |
 |
