Rotary Sand Dryer

Describe:: THROUGHPUT: TDS 623：3-5 T/H. TDS 625：5-10T/H. TDS 6215: 10-15 T/H. TDS 6220: 15-20 T/H. TDS 6230：30-35 T/H. TDS 6250: 50-55 T/H. A variety of drying forms, low energy consumption, high efficiency.

We are here to help:Easy ways to get the answers you need.

Send E-mail get price

Product Detail
Application
Advantages
Parameters

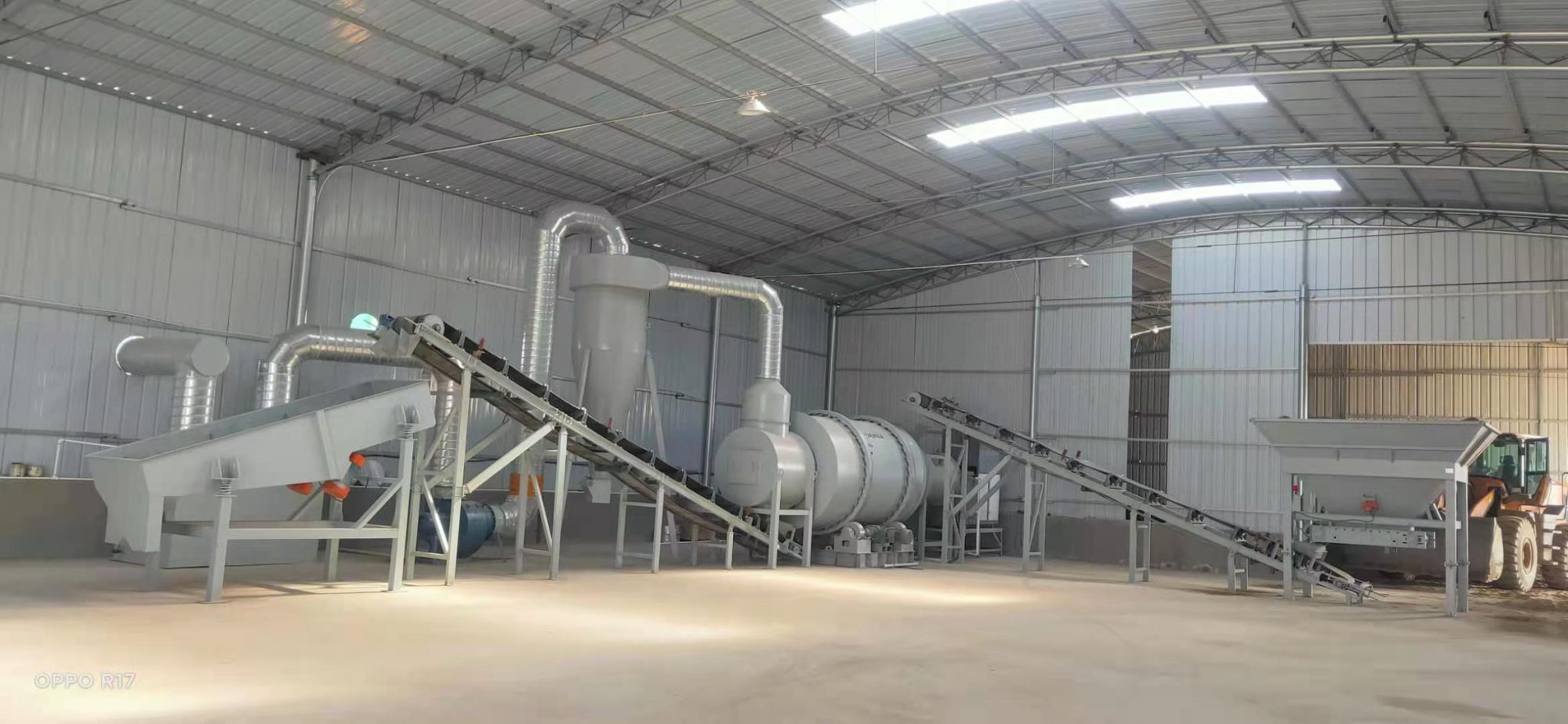

Working process:

Wet sand convey → sand drying →Dust removal→Dry sand screening

Wet sand convey:Wet sand enter into wet sand hopper,through belt feeder and wet sand belt,convey wet sand to sand dryer.

Sand drying:After the wet sand enters the dryer, it rolls inside the dryer and comes in contact with hot air to fully dry it and turn it into dry sand.

Dust removal:When dry sand comes out of the dryer, a lot of dust will be formed, and the dust collector is a device that separates the dust from the flue gas.

Dry sand screening:Customize different screens according to customer requirements to screen the sand types required by customers

Technical Parameter of Sand Rotary Dryer

Specific-ations(m)	Capacity(t/h)	Main motor		Main gear box		Weight(t)
Specific-ations(m)	Capacity(t/h)	Power(kw)	Model	Model	Speed reduction ratio	Weight(t)
ø1.2*10	2.5	7.5	Y160M-R3	ZL50-16-I	-----	13.5
ø1.5*12	3.3-4.9	10	Y160L-6-B3	JZQ500-III-2F	-----	18.9
ø1.5*15	4-6	18.5	Y200L1-6	JZQ500-III-2F	-----	21
ø1.8*12	4-6	18.5	Y160L-6	ZQ50-16II-2	16.46	22.83
ø2.2*12	7-12	18.5	Y200L7-6	JZQ650-III	31.5	37.6
ø2.2*14	7-12	22	Y200L7-6	JZQ650-III	31.5	40
ø2.2*16	12	30	Y225M-6	JZQ750-III	31.5	45
ø2.4*14	12	30	Y250M-6	JZQ750-III	31.5	51
ø2.4*18	10-13	37	Y250M-6	ZL85-13-I	27.16	54
ø2.4*20	10-14	37	Y250N-6	ZL85-13-I	27.16	54.14
ø3*20	25	55	Y250M-4	ZL100-16-I	41.52	78
ø3*25	32-36	75	YR280M-4	ZL100-16-I	41.52	104.9
