Your position : Home > products > Accessory equipment

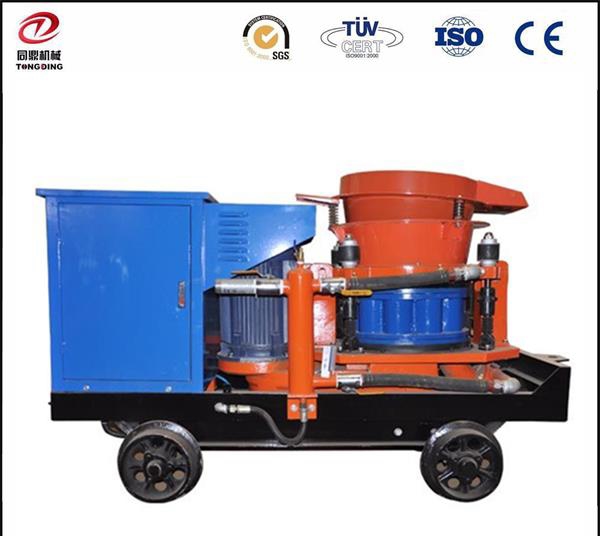

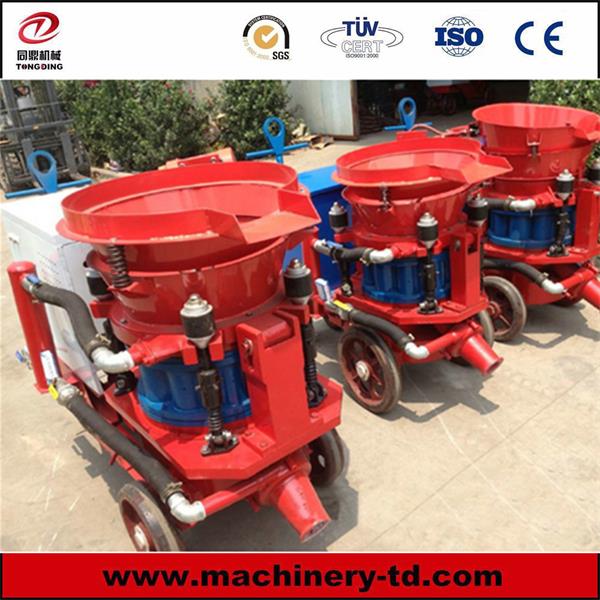

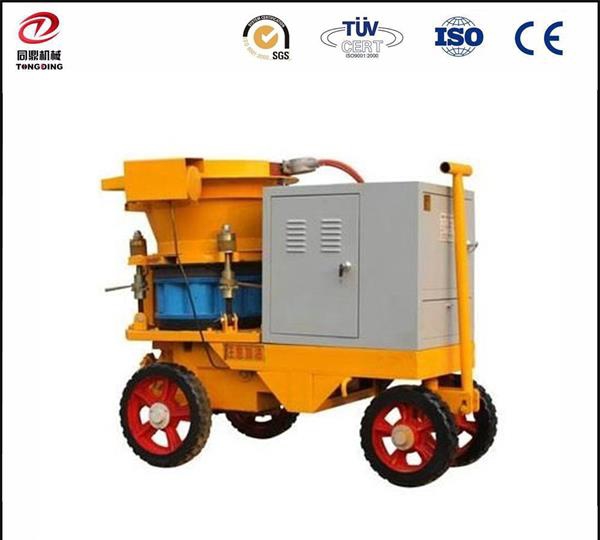

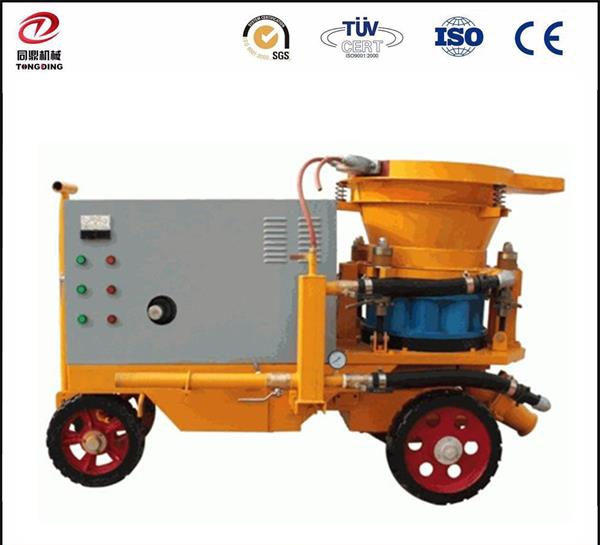

Concrete Spraying Machine

Describe:: Concrete spraying machine is a new type of high efficiency wet spraying concrete construction equipment. It has the features of high efficiency, stable performance, easy operation and maintenance, strong adaptability to the working site, etc..

We are here to help:Easy ways to get the answers you need.

Send E-mail get price

Product Detail
Application
Advantages
Parameters

Concrete spraying machine is a new type of high efficiency wet spraying concrete construction equipment. It has the features of high efficiency, stable performance, easy operation and maintenance, strong adaptability to the working site, etc.. Widely used in traffic tunnel, underground engineering, water and electricity engineering, construction foundation pit, road slope protection and other shotcrete construction work.

model tech parameter	unit	SSP-7
total weight	kg	1000
capacity	m3/h	7
work pressure	M/pa	0.6-0.8
max wind consumption	M3/min	12
Adding ability of liquid accelerator	L/h	0-125
feeding height	m	1.3
motor power	KW	7.5
dimension	mm	2100×900×1250
max conveying distance	m	horizontal30 vertical20
ratio of materials		Cement/sand=1:3-5
water mortar ratio		≤0.4-0.45
max aggregate size	mm	∮20
Rebound rate		average≤15%
Machine dust	Mg/m3	≤10
Rotor speed	r/min	11
voltage	V	380
