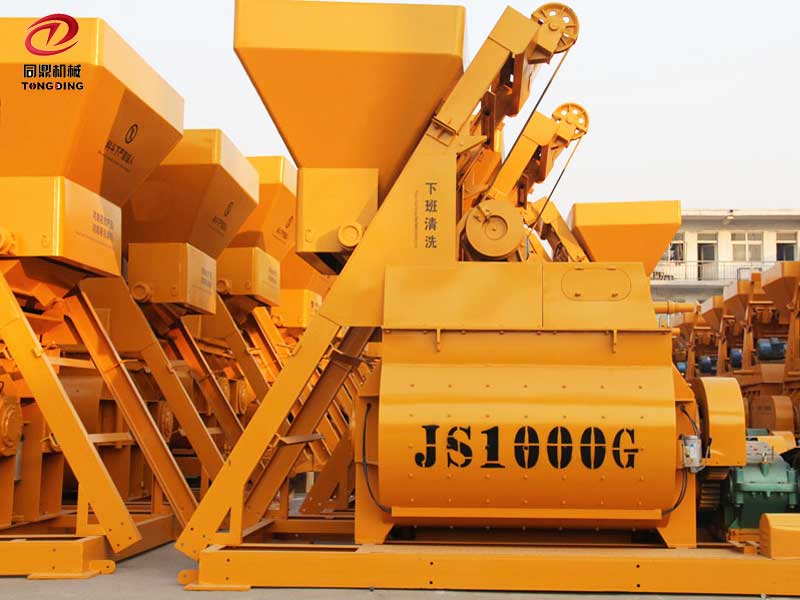

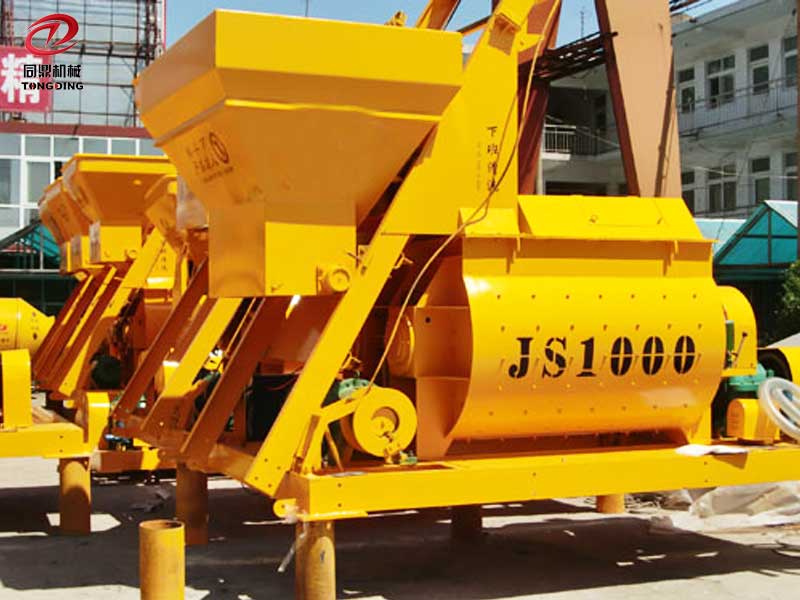

Description of TD-JS1000 Concrete Mixer:
JS series concrete mixer is double horizontal shaft forced type concrete mixer, the machine has the double superiority: stand-alone work and with PLD series concrete batching machine composed simple type concrete mixing plant, also can provide supporting host for concrete mixing plant, applies to all kinds of large, middle, and small prefabricated units factory and the highway, the bridge, the water conservancy, the wharf and so on industrial and the civil construction engineering, can mixing dry concrete, plastic concrete, liquidity concrete, light aggregate concrete and the various mortar, is a efficient model, application very broad.
Features Specification of TD-JS1000 Concrete Mixer:

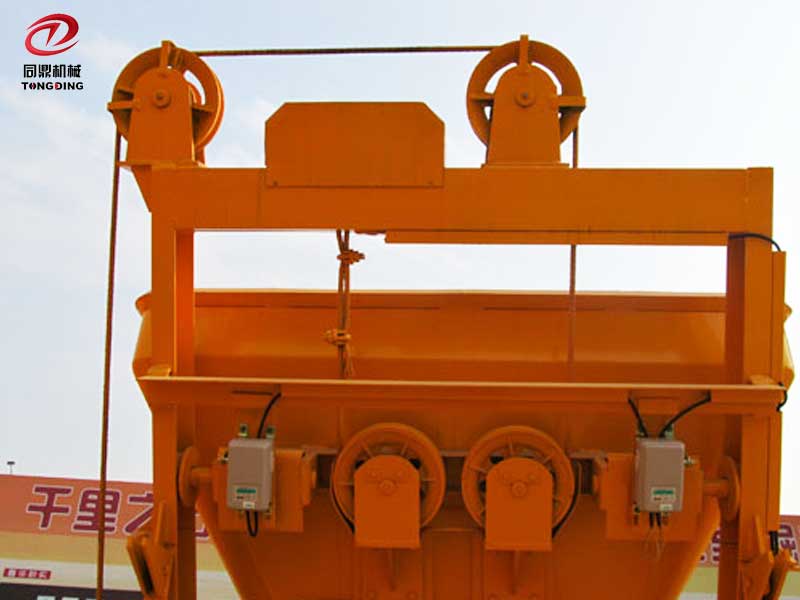

1.Special drum makes wire rope life is longer;
2. Adopt international brand-name limit switch;
3. Accurate machining parts;
4. High quality wear-resistant alloy liner, advanced production technology to ensure the clearance uniformity between mixing blades and liners;
Technical Specification of TD-JS1000 Concrete Mixer:
Model: TD-JS1000
Discharge volume: 1000L
Charging volume: 1600L
Theoretical capacity: ≥50m3
Aggregate sizes: ≤60/80mm
Working circle: 60s
Mixing blade
Speed: 25.5r/min
Quantity: 2×8

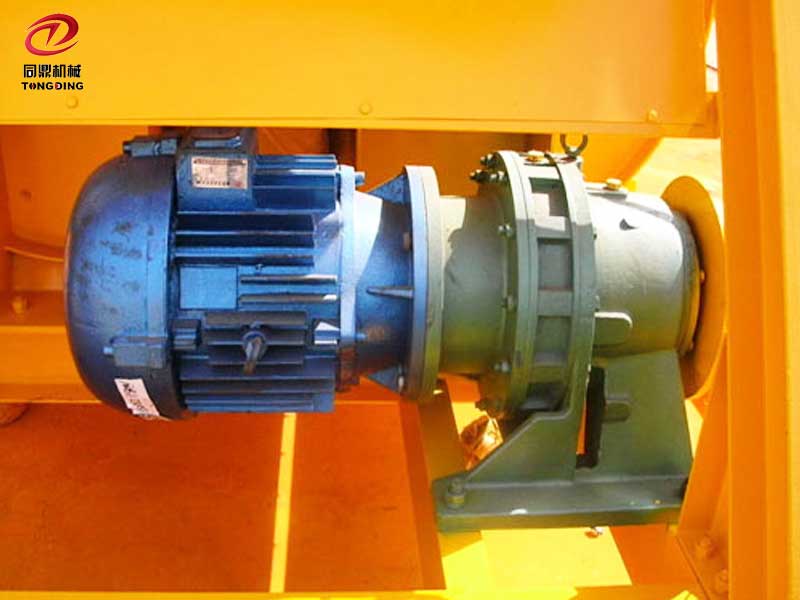

Mixing motor
Model: Y225S-4
Power: 37 kw
Lifting motor
Model: YEZ160L-4
Power: 11 kw
Pump motor
Model: KQW65-100
Power: 3 kw
Weight: 9880kg
Dimensions (L x W x H): 4640x2250x2250 mm
