      TD-HZS35 Concrete Mixing Plant

      Describe:
      TD-HZS35 type concrete mixing plant is the small type product of concrete mixing plant series in UNIQUE Group, concrete mixers and aggregate lifting use TD-JS750B type twin-shaft forced type concrete mixer, aggregate batching adopts TD-PLD1200A concrete b

      We are here to help:Easy ways to get the answers you need.

      Send E-mail get price

      • Product Detail
      • Application
      • Advantages
      • Parameters
       Descriptions of Concrete Mixing Plant:

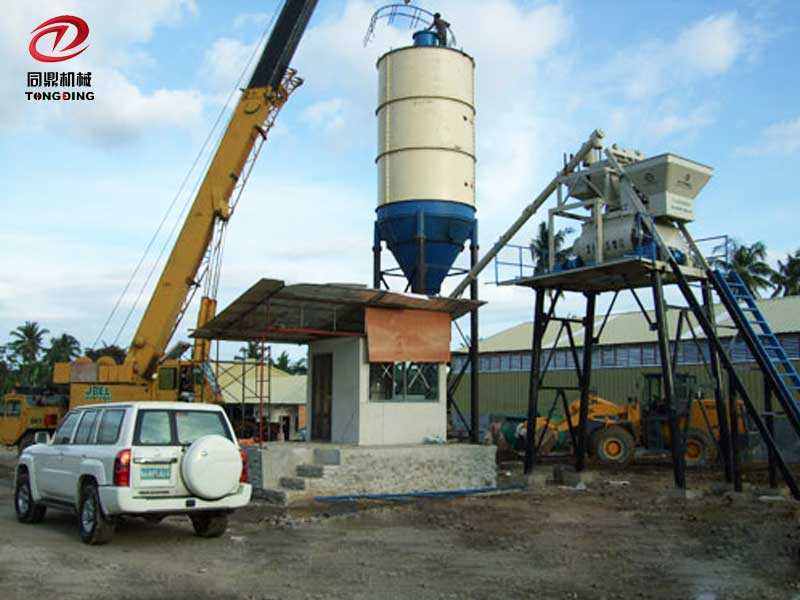

      TD-HZS35 type concrete mixing plant is the small type product of concrete mixing plant series in UNIQUE Group, concrete mixers and aggregate lifting use TD-JS750B type twin-shaft forced type concrete mixer, aggregate batching adopts TD-PLD1200A concrete batching machine, accurate metering and high production efficiency. Suitable for small scale production of construction sites, preformed unit factories and commercial concrete.

      Features of TD-HZS  Concrete Mixing Plant:
      1 "double composite spiral band" host using iron-chromium alloy wear-resistant materials, its shape and surface are with high shock resistance mechanical strength, good wear-resisting property, its center is with good toughness! Proper working life is 50,000 pots, a substantial increase in product life!
      2. The whole plant uses automatic control systems, Siemens TD-PLC, Schneider Electric components, computers and printing integration, simple operation, easy to debug.
      3. Pneumatic system is with Taiwan Fusheng well-known air compressor, providing sufficient air supply for the entire concrete mixing plant.
      4. Weighing system adopts international famous brands, weighing accuracy and sensitivity to ensure the quality of concrete.
      5. Using section structure, unit modulation, fast installation and debugging and moving is very convenient.

      Technical Parameters of TD-HZS35 Concrete Mixing Plant:

      Capacity: 35 m3/h
      Mixing Time: 60 S
      Max Aggregate Size: 60/80 mm
      Discharging Height: 3800 mm
      Total Power: 70KW
      Total Weight: 30Ton
      Total Dimensions: 15200×8500×15400 mm.
      1. MIXING SYSTEM
      Twin Shaft Concrete Mixer: TD-JS750 
      Volume: 1200L
      Capacity: 750L
      Mixing blade: 2×8 pcs
      Mixing Speed: 30.5 r.min
      Mixer Motor: 30kw
      Weight: 6150kg
      Dimensions: 4550×2250×2450mm
      2. AGGREGATE SYSTEM
      2.1 Aggregate batcher: PLD1200
      Volume: 3×2.2 m3
      Capacity: 60 m3/h
      Power: 5×3 kw
      Weight: 4900 kg
      Dimension: 9600×2000×3200mm

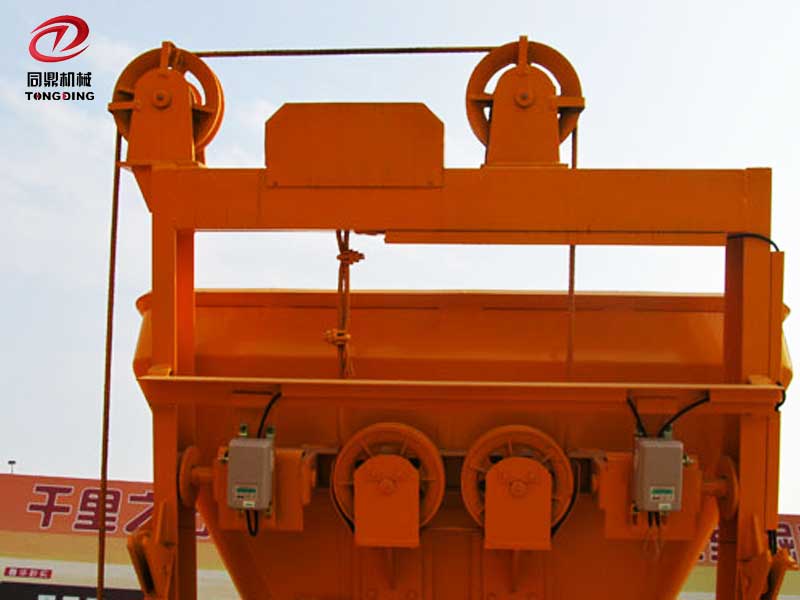

      2.2 Lifting hopper: 1 unit
      Speed: 0.32 m/s
      Power of Motor: 7.5 kw
      3. CEMENT SYSTEM (OPTIONAL);
      3.1 Cement silo: 2units
      Capacity: 50t×2=100t
      Silo Diameter: Φ2800
      3.2 Cement Screw Feeder: 2units
      Diameter: Φ219mm
      Length: 9m
      4. ADDITIVE SYSTEM (OPTIONAL)
      Additive silo Capacity: 1m3
      Pneumatic Valve: Φ50 mm
      Pump: 3kw
      5. WATER SYSTEM
      Motor Power: 3kw
      Butterfly Valve: Φ150 mm
      Capacity: 80m3/h

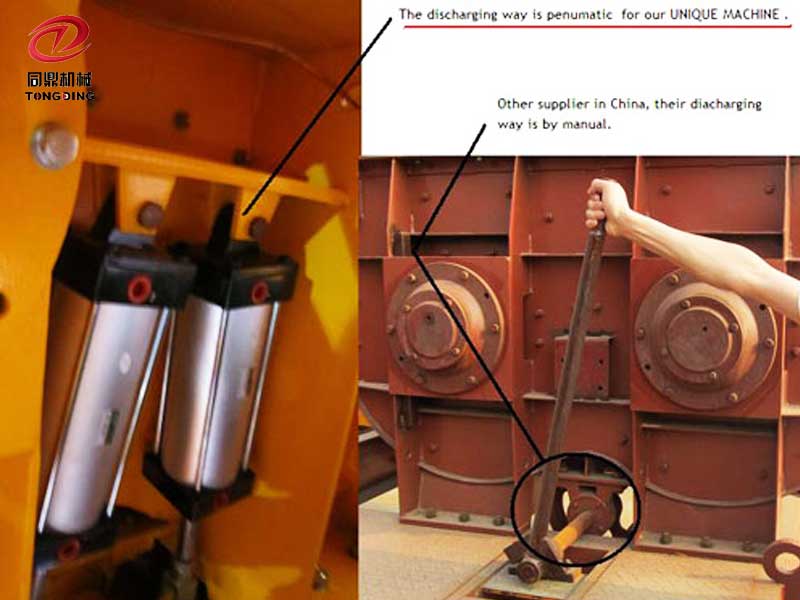

      6. AIR SYSTEM
      Air Compressor: 1unit
      Power: 7.5 kw
      Pressure: 1.0 Mpa
      Air flew: 1.2 m3/min
      7. WEIGHING SYSTEM
      7.1 Aggregate Weighing: 1unit
      Weighing Capacity: 2000kg
      Precision: ±1%
      7.2 Cement Weighing: 1unit
      Weighing Capacity: 400kg
      Precision: ±1%
      7.3 Water Weighing: 1unit
      Weighing Capacity: 200 kg
      Precision: ±1%
      7.4 Additive Weighing: 1unit
      Weighing Capacity: 40 kg
      Precision: ±1%
      8. CONTROL SYSTEM
      PLC command and control operation .
      Main electrical components : SCHNEIDER or SIMENSE
      17’’ colorful computer
      Manuel and Auto Control is freely changeable .


       TD-HZS35 type concrete mixing plant is the small type product of concrete mixing plant series in UNIQUE Group, concrete mixers and aggregate lifting use TD-JS750B type twin-shaft forced type concrete mixer, aggregate batching adopts TD-PLD1200A concrete batching machine, accurate metering and high production efficiency. Suitable for small scale production of construction sites, preformed unit factories and commercial concrete.
       1 "double composite spiral band" host using iron-chromium alloy wear-resistant materials, its shape and surface are with high shock resistance mechanical strength, good wear-resisting property, its center is with good toughness! Proper working life is 50,000 pots, a substantial increase in product life!
      2. The whole plant uses automatic control systems, Siemens TD-PLC, Schneider Electric components, computers and printing integration, simple operation, easy to debug.
      3. Pneumatic system is with Taiwan Fusheng well-known air compressor, providing sufficient air supply for the entire concrete mixing plant.
      4. Weighing system adopts international famous brands, weighing accuracy and sensitivity to ensure the quality of concrete.
      5. Using section structure, unit modulation, fast installation and debugging and moving is very convenient.
       Technical Parameters of TD-HZS35 Concrete Mixing Plant:
      Capacity: 35 m3/h
      Mixing Time: 60 S
      Max Aggregate Size: 60/80 mm
      Discharging Height: 3800 mm
      Total Power: 70KW
      Total Weight: 30Ton
      Total Dimensions: 15200×8500×15400 mm.
      1. MIXING SYSTEM
      Twin Shaft Concrete Mixer: TD-JS750 
      Volume: 1200L
      Capacity: 750L
      Mixing blade: 2×8 pcs
      Mixing Speed: 30.5 r.min
      Mixer Motor: 30kw
      Weight: 6150kg
      Dimensions: 4550×2250×2450mm
      2. AGGREGATE SYSTEM
      2.1 Aggregate batcher: PLD1200
      Volume: 3×2.2 m3
      Capacity: 60 m3/h
      Power: 5×3 kw
      Weight: 4900 kg
      Dimension: 9600×2000×3200mm
      2.2 Lifting hopper: 1 unit
      Speed: 0.32 m/s
      Power of Motor: 7.5 kw
      3. CEMENT SYSTEM (OPTIONAL);
      3.1 Cement silo: 2units
      Capacity: 50t×2=100t
      Silo Diameter: Φ2800
      3.2 Cement Screw Feeder: 2units
      Diameter: Φ219mm
      Length: 9m
      4. ADDITIVE SYSTEM (OPTIONAL)
      Additive silo Capacity: 1m3
      Pneumatic Valve: Φ50 mm
      Pump: 3kw
      5. WATER SYSTEM
      Motor Power: 3kw
      Butterfly Valve: Φ150 mm
      Capacity: 80m3/h
      6. AIR SYSTEM
      Air Compressor: 1unit
      Power: 7.5 kw
      Pressure: 1.0 Mpa
      Air flew: 1.2 m3/min
      7. WEIGHING SYSTEM
      7.1 Aggregate Weighing: 1unit
      Weighing Capacity: 2000kg
      Precision: ±1%
      7.2 Cement Weighing: 1unit
      Weighing Capacity: 400kg
      Precision: ±1%
      7.3 Water Weighing: 1unit
      Weighing Capacity: 200 kg
      Precision: ±1%
      7.4 Additive Weighing: 1unit
      Weighing Capacity: 40 kg
      Precision: ±1%
      8. CONTROL SYSTEM
      PLC command and control operation .
      Main electrical components : SCHNEIDER or SIMENSE
      17’’ colorful computer
      Manuel and Auto Control is freely changeable .
