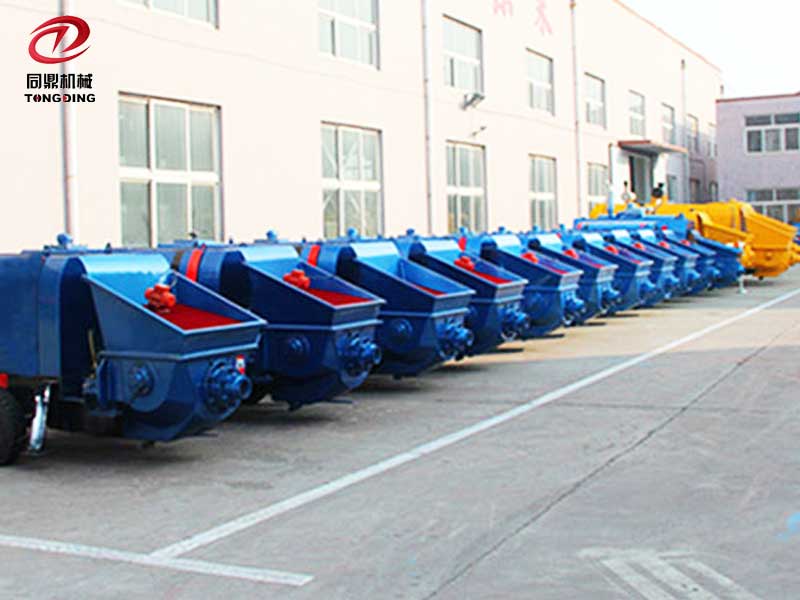

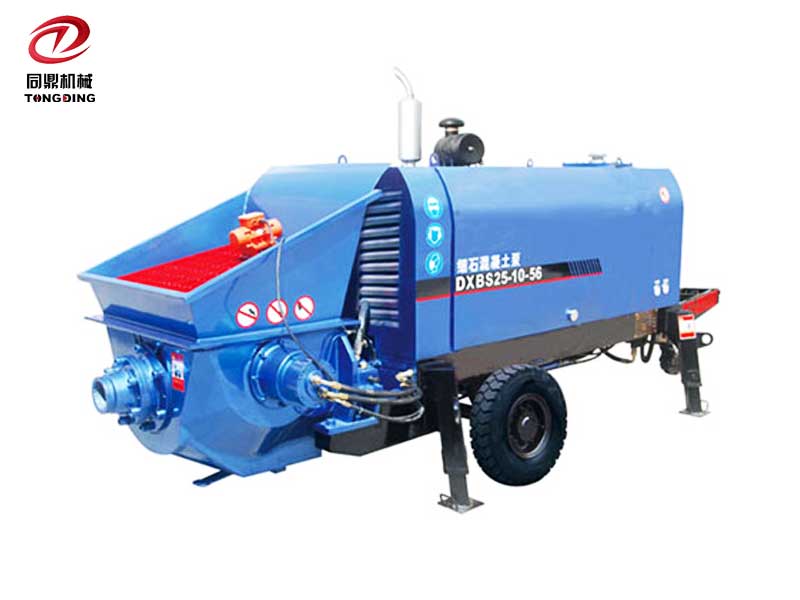

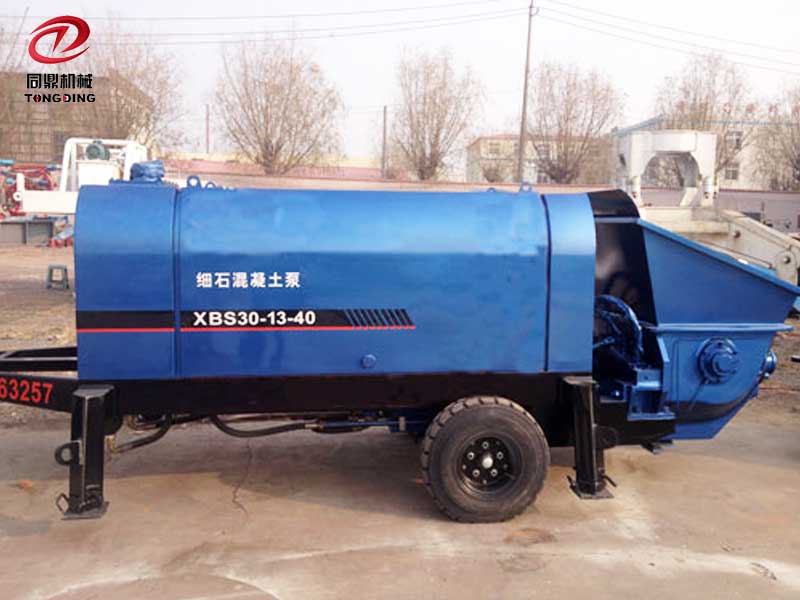

Description of fine stone concrete pump:
TD-DXBS series fine stone concrete pumps are specifically developed mortar conveying equipment for construction of the warming characteristics, suitable for floor heating works of fine stone concrete backfill layer or mortar backfill layer in large-area and highly efficient construction.
TD-DXBS series of products applicable to all types of engineering construction of fine stone concrete conveying, fire-resistant, thermal insulation material conveying and ecological environment construction. Green soil transmission, various types of base pressure Grouting pile.
TD-DXBS series of fine stone pump on the basis of the original ￠80 pipe change to ￠100 delivery pipe, and it can deliver 3cm concrete, use more widely.
Features of Fine Stone Concrete Pump:
1. Extended component life: uses the entire hydraulic reversing control hydraulic system, pumping, S tube distribution alternately reversing action without electrical intervention, reversing the impact of small, low noise and improved hydraulic pumps, hydraulic valve lifetime.
2. Improving equipment reliability: The full-hydraulic control hydraulic system eliminates the need for electrical control signals the middleman and greatly enhance the operation reliability of the equipment package.
3. Reduce fault frequency: full-hydraulic reversing control uses focus valve plate, puts main system hydraulic valve focus on one valve plate, reducing cross-connection pipe, the system is more compact, reduce opportunities for oil spill.
4. Reduce maintenance costs: full hydraulic reversing control hydraulic system deletes electronically controlled commutation system extremely susceptible to damage in four parts, reduces the maintenance cost of equipment.
Parameters of Fine Stone Concrete Pump:
| Item |
Unit |
TD-DXBS30-13-56 |
TD-DXBS25-10-56 |
| Maximum Theoretical Delivery Volume |
M3/h |
30 |
25 |
| Maximum Outlet Pressure |
Mpa |
13 |
10 |
| Max. aggregates diameter |
mm |
≦30(≦20) |
≦30(≦20) |
| Cylinder Diameter * Stroke |
mm |
Φ140*1200 |
Φ140*1200 |
| Diesel Engine Power |
kw |
56 |
56 |
| Delivery Pipe Inner Diameter |
mm |
Φ100（Φ80） |
Φ100（Φ80） |
| Outline Dimension |
mm |
4600*1500*1550 |
4600*1500*1550 |
| Weight |
kg |
2450 |
2300 |
| Maximum Theoretical Delivery Distance |
m |
Vertical |
550 |
350 |
| Horizontal |
220 |
140 |
TD-DXBS series fine stone concrete pumps are specifically developed mortar conveying equipment for construction of the warming characteristics, suitable for floor heating works of fine stone concrete backfill layer or mortar backfill layer in large-area and highly efficient construction.
TD-DXBS series of products applicable to all types of engineering construction of fine stone concrete conveying, fire-resistant, thermal insulation material conveying and ecological environment construction. Green soil transmission, various types of base pressure Grouting pile.
TD-DXBS series of fine stone pump on the basis of the original ￠80 pipe change to ￠100 delivery pipe, and it can deliver 3cm concrete, use more widely.
1. Extended component life: uses the entire hydraulic reversing control hydraulic system, pumping, S tube distribution alternately reversing action without electrical intervention, reversing the impact of small, low noise and improved hydraulic pumps, hydraulic valve lifetime.
2. Improving equipment reliability: The full-hydraulic control hydraulic system eliminates the need for electrical control signals the middleman and greatly enhance the operation reliability of the equipment package.
3. Reduce fault frequency: full-hydraulic reversing control uses focus valve plate, puts main system hydraulic valve focus on one valve plate, reducing cross-connection pipe, the system is more compact, reduce opportunities for oil spill.
4. Reduce maintenance costs: full hydraulic reversing control hydraulic system deletes electronically controlled commutation system extremely susceptible to damage in four parts, reduces the maintenance cost of equipment.
