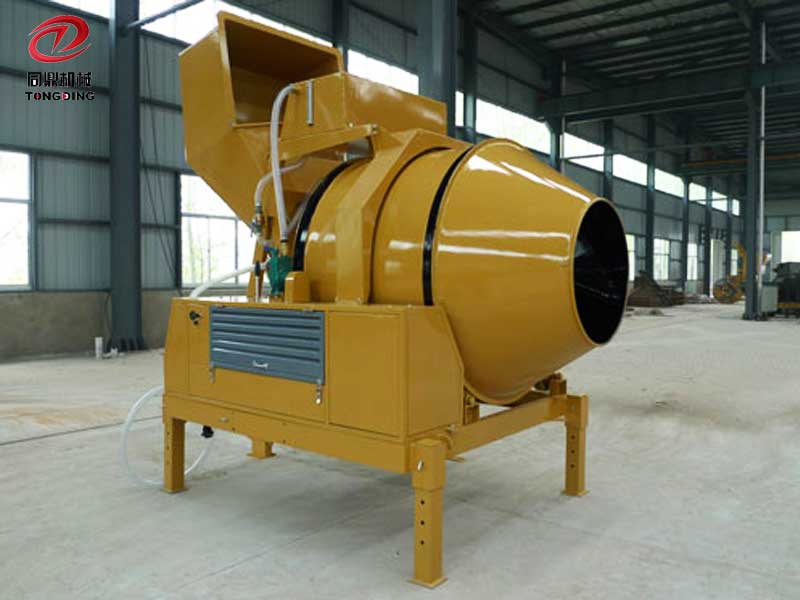

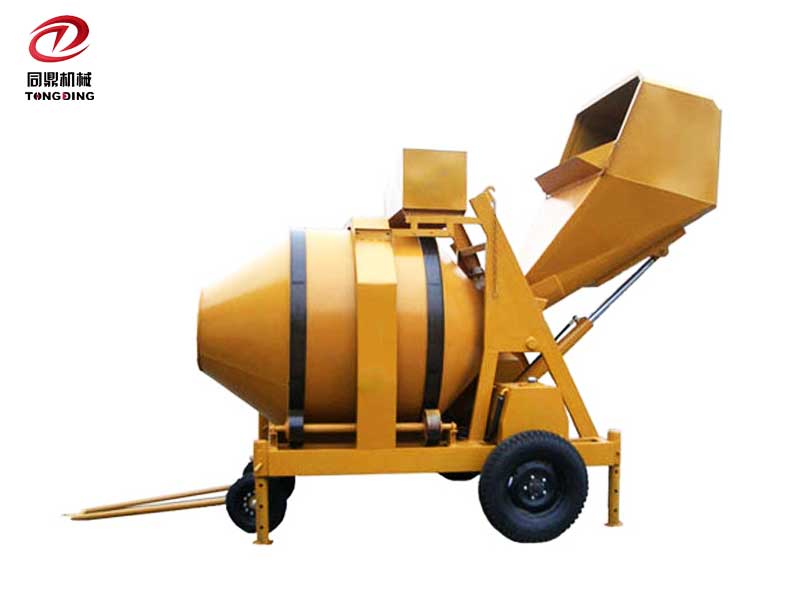

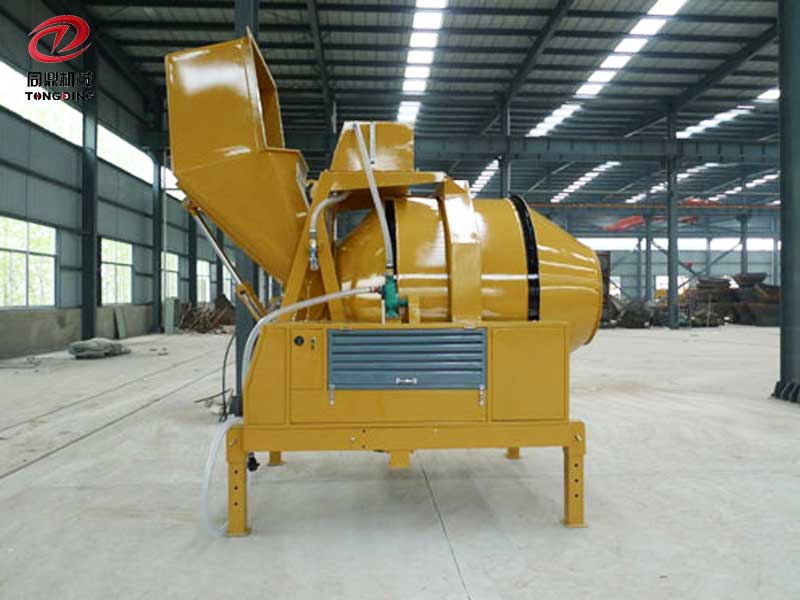

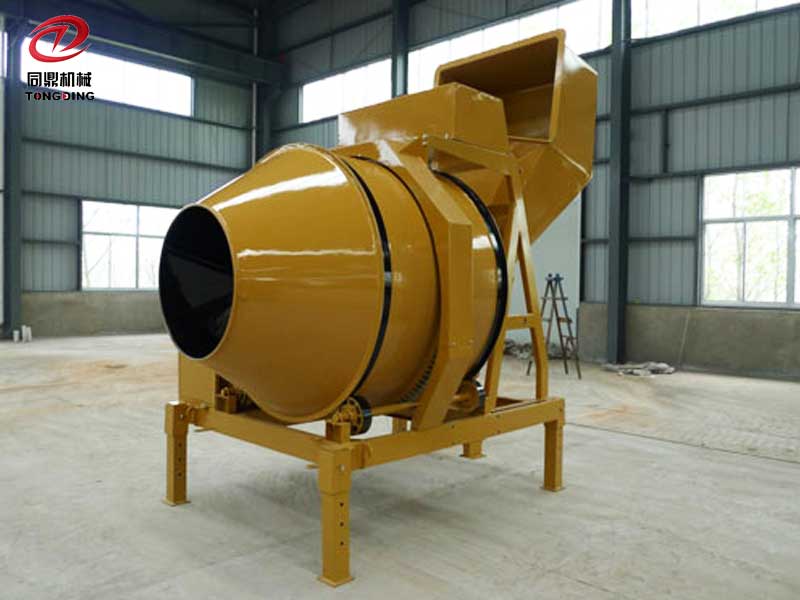

      TD-JZR500 Diesel Engine Concrete Mixer

      Describe:
      TD-JZR500 diesel engine?concrete mixer is of bigger capacity, self-falling type. It is suitable for mixing plastic and low-slump concrete.

      We are here to help:Easy ways to get the answers you need.

      Send E-mail get price

      • Product Detail
      • Application
      • Advantages
      • Parameters
      Description of TD-JZR Diesel Engine Concrete Mixer:

      TD-JZR500 diesel engine concrete mixer is of bigger capacity, self-falling type. It is suitable for mixing plastic and low-slump concrete. The aggregate size is required to be smaller than 60 mm.
      The drum revolves for mixing and reverses for discharging. The rated output capacity of this mixer is 0.50 cubic meter.
      The concrete mixer is widely used in building site, road and bridge project, and many other construction sites.

      Features of TD-JZR500 Diesel Engine Concrete Mixer:
      1) It adds a water pump for water circulation between water tank of the engine and the radiator; keeps the engine water temperature to be stable.
      2) Removing the air sucking point from the back to the front, reduce to suck the dust. It will be good to prolong the service life of the engine.
      3) Compact structure; higher reliability; mixing evenly; big capacity; easy operation; easily movable between sites, etc.

      Parameters of TD-JZR500 Diesel Engine Concrete Mixer:

      Model TD-JZR500
      Type Self-falling
      Towing Four-towing wheels
      Capacity of loading 750L
      Capacity of discharging 500L
      Capacity of water tank 140L
      Diesel engine Model YANMAR CY1115-XE
      Power 14.7kw
      Speed 2200r/min
      Max towing speed 20 km/h
      Max. Aggregate size 60mm
      Output 18~22m3/h
      Hopper lifting model Hydraulic tipping hopper
      Tire 6.50-16
      4.00-8
      Overall dimension(L×W×H) 3750×2240×3800mm
      Total weight 2050kg
       TD-JZR500 diesel engine concrete mixer is of bigger capacity, self-falling type. It is suitable for mixing plastic and low-slump concrete. The aggregate size is required to be smaller than 60 mm.
      The drum revolves for mixing and reverses for discharging. The rated output capacity of this mixer is 0.50 cubic meter.
      The concrete mixer is widely used in building site, road and bridge project, and many other construction sites.
       1) It adds a water pump for water circulation between water tank of the engine and the radiator; keeps the engine water temperature to be stable.
      2) Removing the air sucking point from the back to the front, reduce to suck the dust. It will be good to prolong the service life of the engine.
      3) Compact structure; higher reliability; mixing evenly; big capacity; easy operation; easily movable between sites, etc.
       Parameters of TD-JZR500 Diesel Engine Concrete Mixer:
      Model TD-JZR500
      Type Self-falling
      Towing Four-towing wheels
      Capacity of loading 750L
      Capacity of discharging 500L
      Capacity of water tank 140L
      Diesel engine Model YANMAR CY1115-XE
      Power 14.7kw
      Speed 2200r/min
      Max towing speed 20 km/h
      Max. Aggregate size 60mm
      Output 18~22m3/h
      Hopper lifting model Hydraulic tipping hopper
      Tire 6.50-16
      4.00-8
      Overall dimension(L×W×H) 3750×2240×3800mm
      Total weight 2050kg
