Cement Silo

Describe:: The flake cement silo is a new model silo which is transported to the work site to connect by bolts after through the modular production and processing.

We are here to help:Easy ways to get the answers you need.

Send E-mail get price

Product Detail
Application
Advantages
Parameters

Descriptions of Cement Silo:

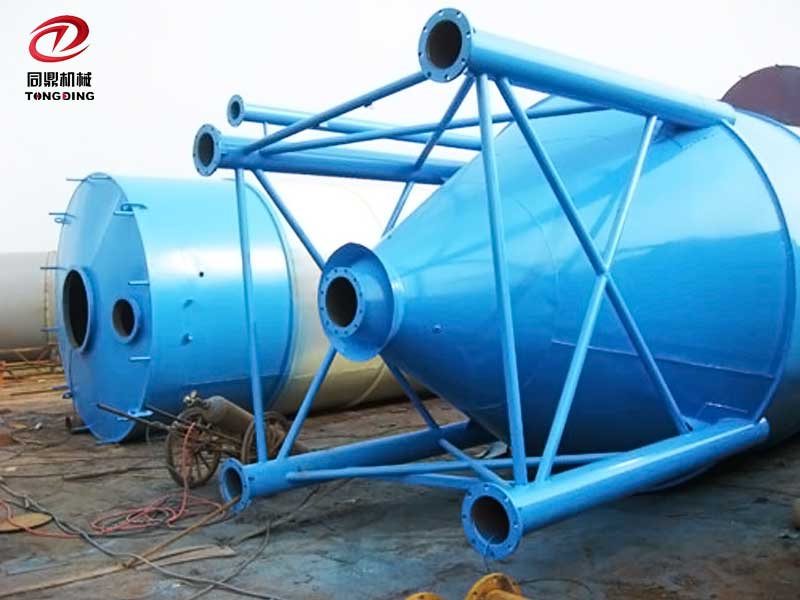

The flake cement silo is a new model silo which is transported to the work site to connect by bolts after through the modular production and processing. Parts of this type bulk cement silo consist of the mechanical processing to complete. It frees from traditional on-site fabrication and get rid of the rough and defect of condition limit caused by manual welding and torch cutting, It has the advantage of beautiful appearance, short duration, easy to install, concentrate on transportation and recycle after used.
The flake cement silo consist of dust pelletizing system, arch breaking device, level device and ladder stand and so on.
1. The dust pelletizing system: On the top of cement silo equips with power-operated exhaust dust device which can effectively adsorb the particle of silo to lighten the pollute of around environment.
2. The arch breaking device: The hypo cone of cement silo is equipped with inflatable arch breaker. It uses the small electromagnetic valve located in the gas control box to control the release of compressed air, and broken arch of cement and all kinds of powder to avoid the powder accumulation, causing blockage.
3.The level device: The level device of fission cement silo can percept the store height of material in silo.

Features of Cement Silo:
1. Good sealing performance with five-layer spiral crimping, the seams are very tight, and the silo is of a good sealing performance and can be used as a fumigating silo. It is also suitable for storing building material such as cement. With Seal gum embedded into spiral crimping seams, the spiral silo can store fluid material such as waste water.
2. Small area occupancy, Height and diameter are optional in a wide range. The distance between two silos can be minimized to 600mm to make the most of available space and reduce area occupancy.
3. Long service life, Best sheets match to silo body enables a normal service life up to 25-30 years.
4. Short construction period, Highly mechanized construction of spiral silos on site, short construction period. Just eight days for a 2000 ton steel silo construction.

■ Parameters

Type of cement silo	Tank diameter	Tank height	Tank total height	Match mixer
TD-SNC 30T	2.5m	4.8m	11.4m	TD350
TD-SNC 50T	3m	5.4m	12m	TD500
TD-SNC 80T	3m	9m	15.6m	TD750
TD-SNC 100T	3m	11.4m	18m	TD1000
TD-SNC 150T	3m	23.5m	29m	TD1000
TD-SNC 200T	4.5m	18.6m	25.2m	TD1500
TD-SNC 300T	4.5m	24.6m	29.5m	TD2000
